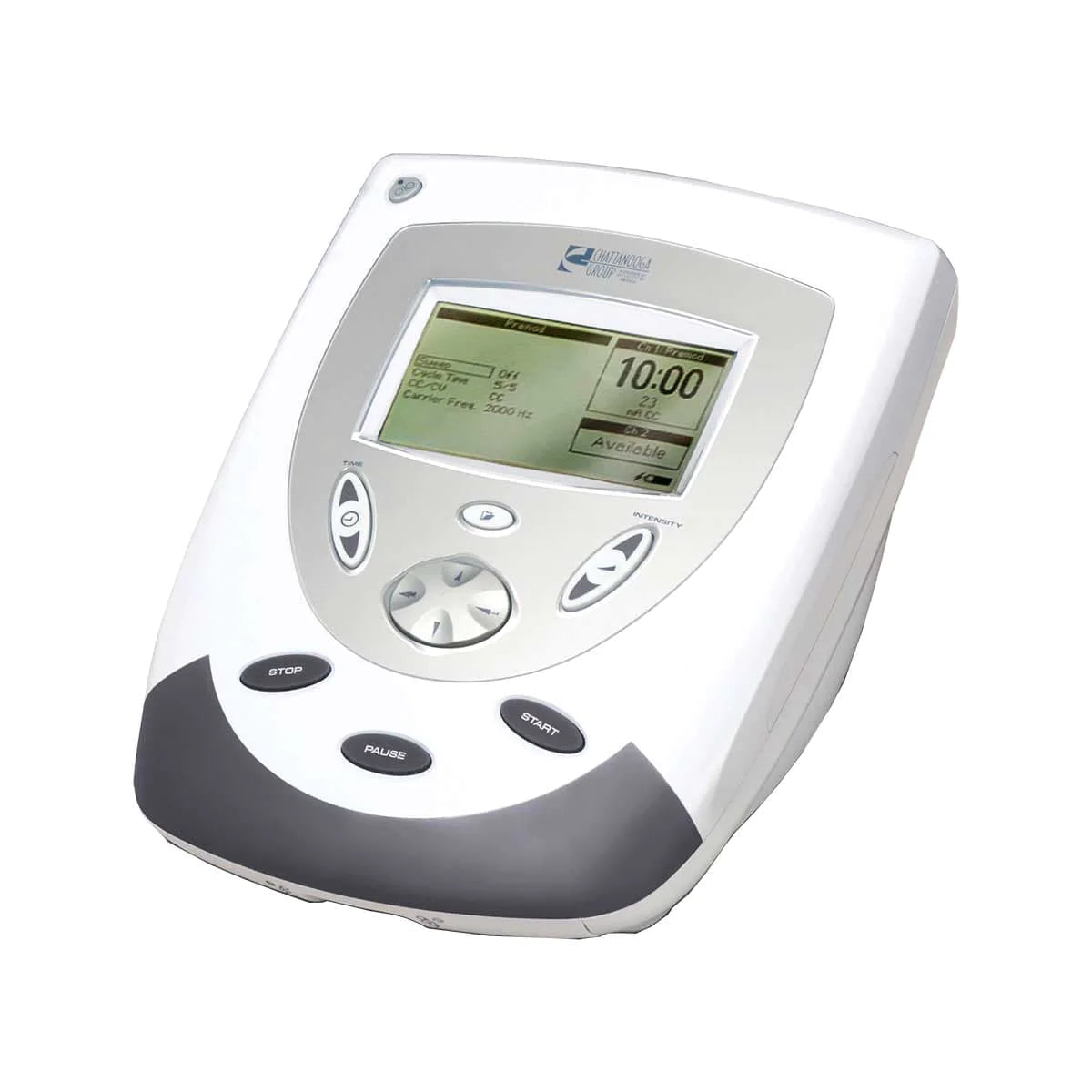

Intelect TranSport 2 Channel Electrotherapy - 2783

The Intelect TranSport 2-Channel Ultrasound Machine has a lightweight design, battery-powered option, and custom-designed mobile carrying bag, making transport easy. The unit provides an innovative case design, with a logical control system and a large, easy to read graphical LCD. User-defined protocols allow you to customize any electrotherapy treatment to the specific needs of your patient.

Specifications & Features

• Model: 2783
• Premodulated current is a medium frequency waveform.

• Output Intensity: 0-100 V
• Carrier Frequency: 2,500 Hz
• Beat Fixed (Sweep Off ): 1-199 Hz
• Sweep Low Beat Frequency: 1-199 Hz
• Sweep High Beat Frequency: 2-200 Hz
• Cycle Time: Continuous, 5/5, 4/12, 10/10, 10/20, 10/30, and 10/50
• Mode: Constant Voltage
• Treatment Time: 1-60 min
• The High Voltage Pulsed Current (HVPC) has a very brief pulse duration characterized by two distinct peaks delivered at high voltage.

• Output Intensity: 0-500 V

• Polarity: Positive or Negative

• Ramp: 0.5 sec, 1 sec, 2 sec, 5 sec

• Display: Peak Current or Volts

• Sweep: Continuous, 80/120 pps, 1/120 pps, 1/10 pps
• Frequency: 10-120 pps

• Cycle Time: 5/5, 4/12, 10/10, 10/20, 10/30, 10/50, Continuous
• Treatment Time: 1-60 Min
• Size: 11.3 in (28.8 cm) x 12.8 in (32.8 cm) x  6.4 in (16.3 cm)

• Input: 100 - 240 V - 1.0 A, 50/60 Hz 100 W Max
• Output:+24 V, 3.125 A
• Electrical Class: CLASS I
• Battery Type: Nickel Metal Hydride (NiMH), (1.2 V x 20 size AA)
• Product Weight: 5lb (2.3 kg) Shipping Weight: 9lb (4 kg)
• Two-year warranty
• User manual (PDF)
•
